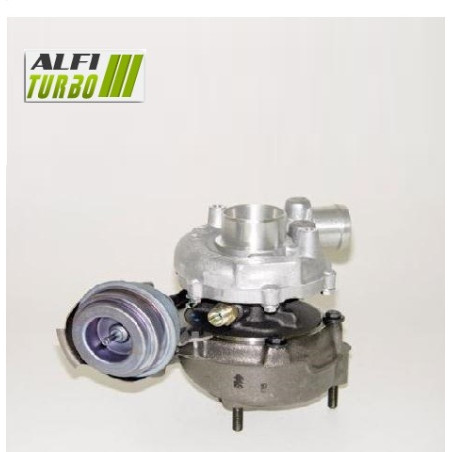

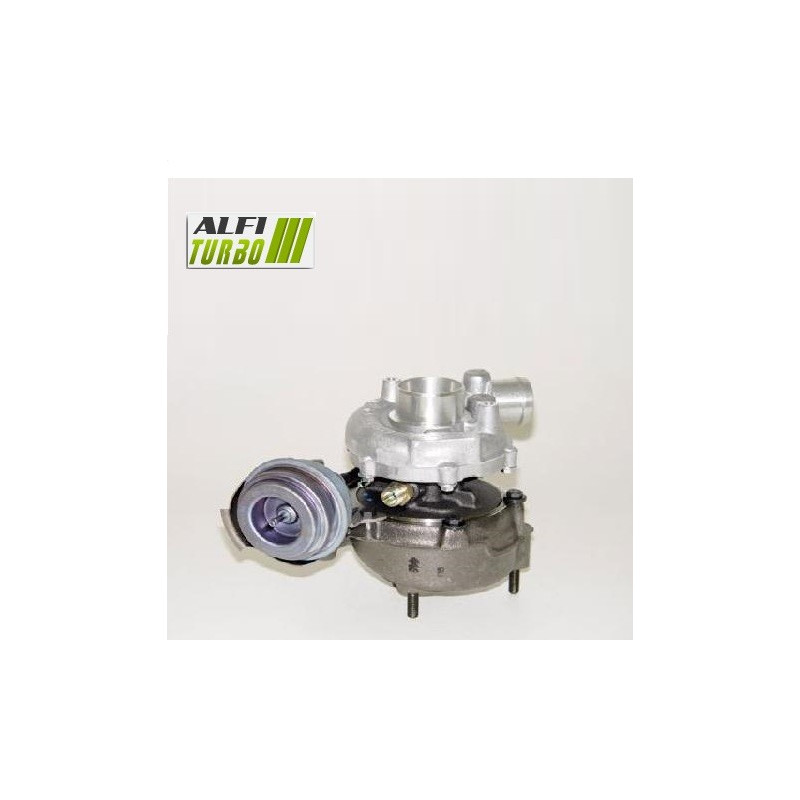

Hybrid Turbo 1.9 TDI 90 100 110 115 hp, 454231, 028145702A, 028145702H, 038145702H

Hybrid Turbo plug & play (installation without modification)

Stage 1

MFS* high-flow compressor wheel 32.94/49.00mm, 6+6 Performance design, D170

360° thrust bearing

High-speed balancing (150,000 RPM) on Cimat VSR bench

Stage 2

Oversized high-flow MFS* compressor wheel, 36.77/52.19mm 11+0 Performance design D210

Re-profiled housing to accommodate new oversized wheel

360° thrust bearing

High-speed balancing (150,000 RPM) on Cimat VSR bench

Stage 2+

Oversized high-flow MFS* compressor wheel, 39.61/56.02mm 11+0 Performance design, D250

Re-profiled housing to accommodate new oversized wheel

360° thrust bearing

High-speed balancing (150,000 RPM) on Cimat VSR bench

----------

To achieve this level of power, you also need to adjust your systems d'injection, 'exhaust, cooling and engine calculator. Adjustment of the wastegate must be made during the installation and retrieval of the calculator.

----------

OEM Reference

028145702A, 028145702AV, 028145702AX, 028145702H, 028145702HV, 028145702HV225, 028145702HV500, 028145702HX, 038145702HV, 038145702HV, 038145702HX, 038145702K, 038145702KV, 038145702KX, 038145702LX,

Manufacturer reference

454231-0001, 454231-0003, 454231-0004, 454231-0005, 454231-0007, 454231-1, 454231-3, 454231-4, 454231-5, 454231-5007S, 454231-7, 761437-0001, 761437-0003, 761437-0005, 761437-1, 761437-3, 761437-5,

Compatible vehicle

Audi

A4 BEFORE Serie 1 PHASE 2 1.9 TDI 115 starting in 1998
A4 BEFORE Serie 2 1.9 TDI 100 116 from 1998 onwards
A4 BEFORE Serie 2 PHASE 2 1.9 TDI 116 from 1998 onwards
A4 Serie 2 1.9 TDI 100 116 from 1998 onwards
A4 Serie 2 PHASE 2 1.9 TDI 116 from 1998 onwards
A6 1.9 TDI 100 110 115 from 1998

Skoda

SUPER B 1.9 TDI 105 115 from 1998 onwards

VolksWagen

Passat B4 1.9 TDI 115 starting in 1998
Passat B5 1.9 TDI in the united states, the share of women in the labour force increased from 36% in 1998 onwards
