  • Hybrid Turbo 1.9 DTi 80 82 hp, 53039700014, 454165, 700830, 703753

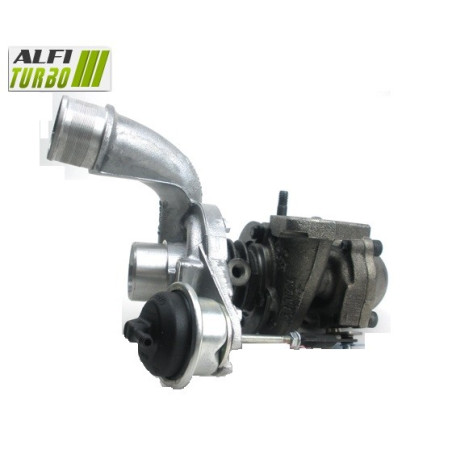

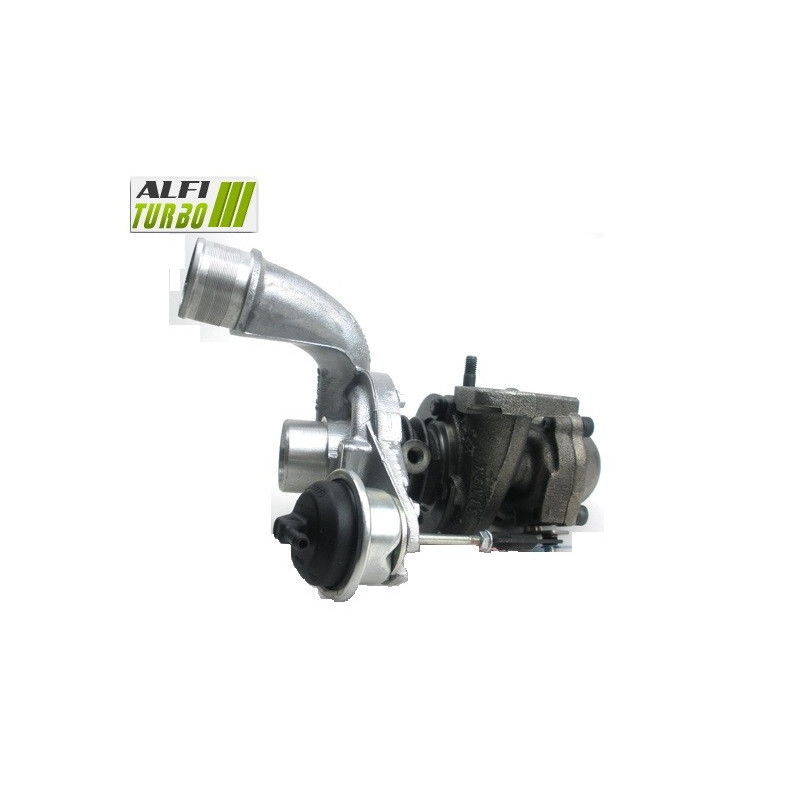

Hybrid Turbo 1.9 DTI 80CV 82CV, 53039700014 53039700038

€289.80
VAT included

Year A partir de 1997 -

Horse power  80 90 95 98 100 hp

Displacement 1.9 DTi

Code FQ9730 F9Q710 F9Q716 F9Q722 F9Q734 F8Q730

Garantie 1 an

Gasket kit: I don't need
Preparation course: Stage 1
Quantity

Turbo performance plug & play (Installation without modification)

Stage 1

MFS* high-flow compressor wheel*

360° thrust bearing°

High-speed balancing (150,000 RPM) on Cimat VSR bench.

Stage 2

Roue compresseur MFS* gros débit surdimensionnée

Re-profiled compressor housing for accueillir nouvelle roue surdimensionnée

360° thrust bearing°

Roue turbine allégé et re-profilé for reduire la contre pression

High-speed balancing (150,000 RPM) on Cimat VSR bench.

Stage 3

Roue compresseur MFS* gros débit surdimensionnée

Re-profiled compressor housing to accommodate an oversized new wheel

360° thrust bearing°

Roue turbine gros debit surdimensionnée

Carter turbine re-profilé to accommodate an oversized new wheel

Roue turbine allégé et re-profilé for reduire la contre pression

High-speed balancing (150,000 RPM) on Cimat VSR bench.

MFS: Roue compresseur en alu forgé, plus légère, plus grosse et plus haute que l'origine, permet d'avoir 15% de compression supplémentaire.

To achieve maximum power levels, you must also adjust your 'injection, ', exhaust, cooling systems, and engine ECU 'The actuator adjustment must be performed during installation and ECU remapping   .

OEM Reference

8200107826 | 7700107795 | 7700108030 | 7700108948 | 7700111747 |

7700115414 | 7700872574 | 7701471634 | 7701473551 | 7711134065 | 8601640

7711134065 | 8200715891 | MW30620721 | MW31216381

Manufacturer reference

53039700014 | 53039700038 | 53039800014 | 53039800038 | 53039880014 |

53039880038 | 53039900014 | 53039900038 | K03-014 | K03-038 | 454165-0001

454165-1 | 700830-0001 | 700830-0003 | 700830-1 | 700830-3 | 700830-5001S

703753-0001 | 703753-1 |

Vehicle assignment

Renault

Espace 3 1.9 DTI 100 à partir de 1996
Espace 3 PHASE 2 1.9 DTI 100 à partir de 1996
Kangoo 1.9 DTI 82 à partir de 1997
Laguna PHASE 2 1.9 DTI 100 à partir de 1998
Megane 1 PHASE 2 1.9 DTI 80 90 100 à partir de 1996
Megane CLASSIC PHASE 1 1.9 DTI 80 90 100 à partir de 1996
Megane CLASSIC PHASE 2 1.9 DTI 80 90 100 à partir de 1996
Megane Scenic 1.9 DTI 80 90 100 à partir de 1996

Volvo

S40 1.9 TDI 90 95 à partir de 1995
V40 1.9 TDI 95 à partir de 1995

700830
