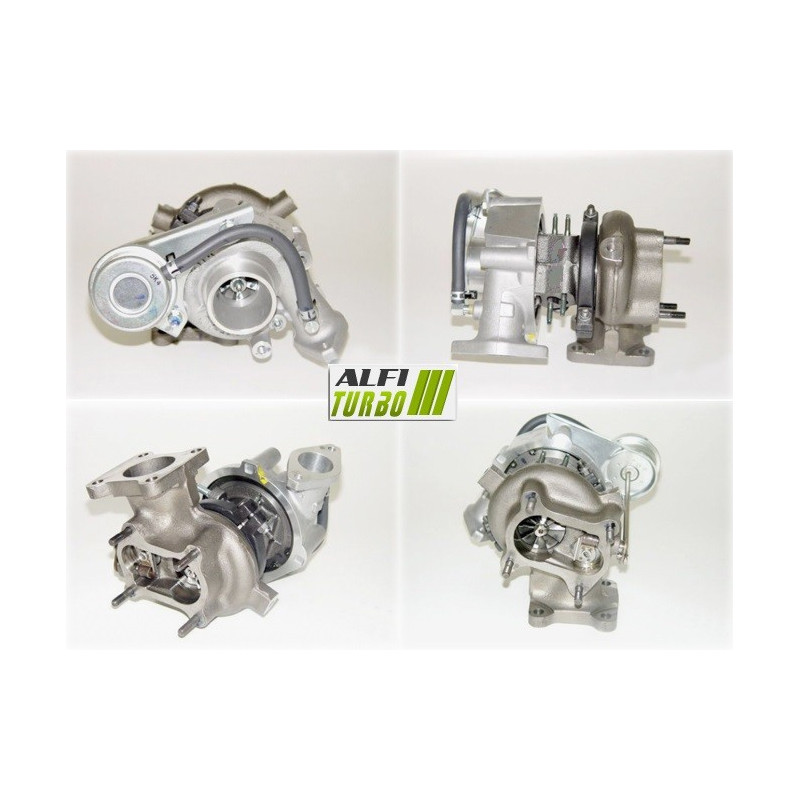

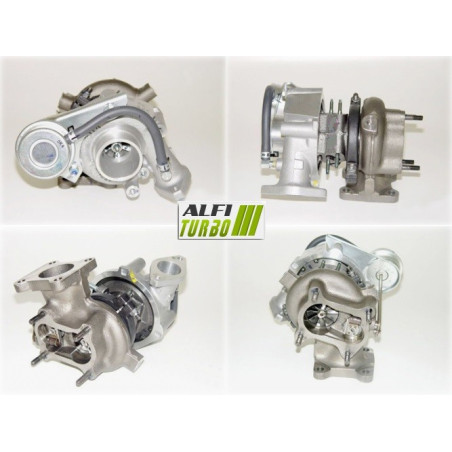

Hybrid Turbo Toyota 2.4D 86 90 hp, 17201-54030, CT20WCLD, 1720154030

Hybrid Turbo plug & play (installation without modification)

Stage 1

Compressor wheel big debit MFS 38.69/57.00mm, 6+6 Performance

360° thrust bearing

High-speed balancing (150,000 RPM) on Cimat VSR bench

Stage 2

Oversized high-flow MFS* compressor wheel, 50.00/62.00mm, 11+0 Performance

Re-profiled housing to accommodate new oversized wheel

360° thrust bearing

High-speed balancing (150,000 RPM) on Cimat VSR bench

Stage 2+

Oversized high-flow MFS* compressor wheel, 45.82/64.89mm, 11+0 Performance

Re-profiled housing to accommodate new oversized wheel

360° thrust bearing

High-speed balancing (150,000 RPM) on Cimat VSR bench

----------

To achieve this level of power, you also need to adjust your systems d'injection, 'exhaust, cooling and engine calculator. Adjustment of the wastegate must be made during the installation and retrieval of the calculator.

----------

Manufacturer reference

17201-54030, CT20WCLD, 1720154030

Vehicle assignment

Toyota

4-RUNNER 2.4 TD 90 from 1984
LANDCRUISER 2.4 TD 90 from 1984
