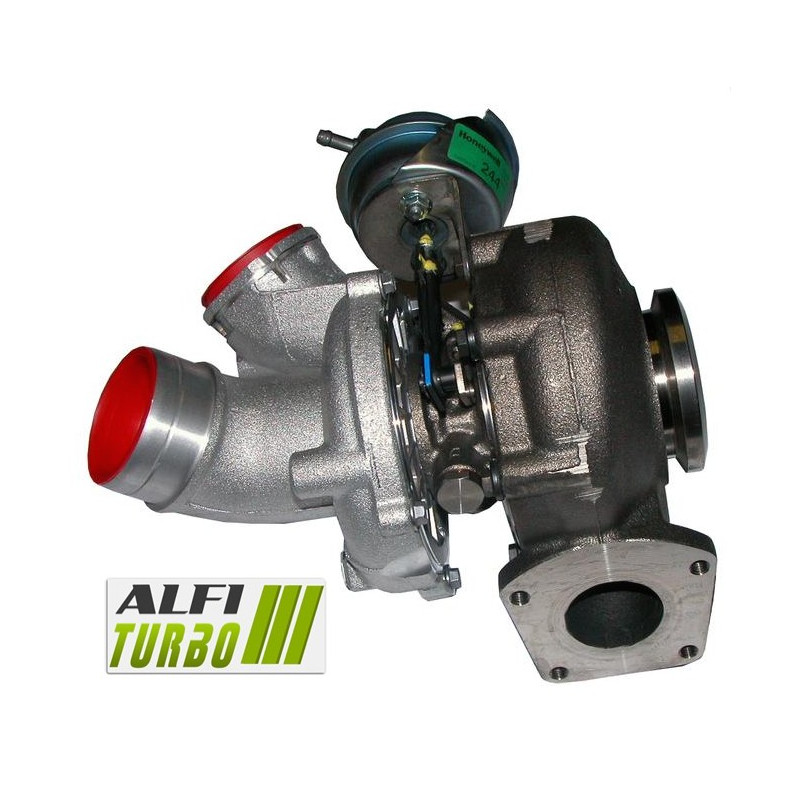

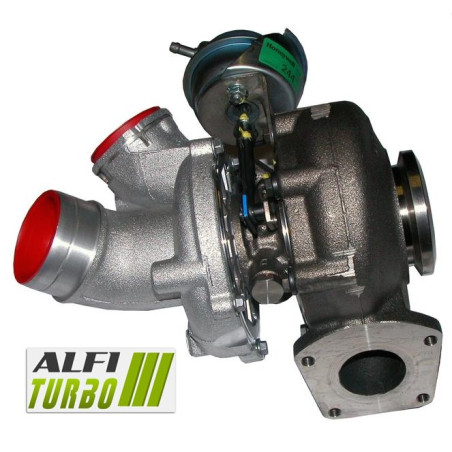

Hybrid Turbo VW Touareg 2.5 TDI 174 hp, 070145701J, 070145701JV, 070145701JX, 070145702B, 070145702BV, 070145702BX, 716885-0001

Hybrid Turbo plug & play (installation without modification)

Stage 1

MFS* high-flow compressor wheel 39.57/56.03mm, 11+0 Performance design, D230

360° thrust bearing

High-speed balancing (150,000 RPM) on Cimat VSR bench

Stage 2

Compressor wheel MFS* big doversized ebit, 47,50/60,01mm, 11+0 Performance Design, D270

Re-profiled housing to accommodate new oversized wheel

360° thrust bearing

High-speed balancing (150,000 RPM) on Cimat VSR bench

Stage 2+

Oversized high-flow MFS* compressor wheel, 50.20/65.00mm, 11+0 Performance design, D320

Re-profiled housing to accommodate new oversized wheel

360° thrust bearing

High-speed balancing (150,000 RPM) on Cimat VSR bench

----------

To achieve this level of power, you also need to adjust your systems d'injection, 'exhaust, cooling and engine calculator. Adjustment of the wastegate must be made during the installation and retrieval of the calculator.

----------
