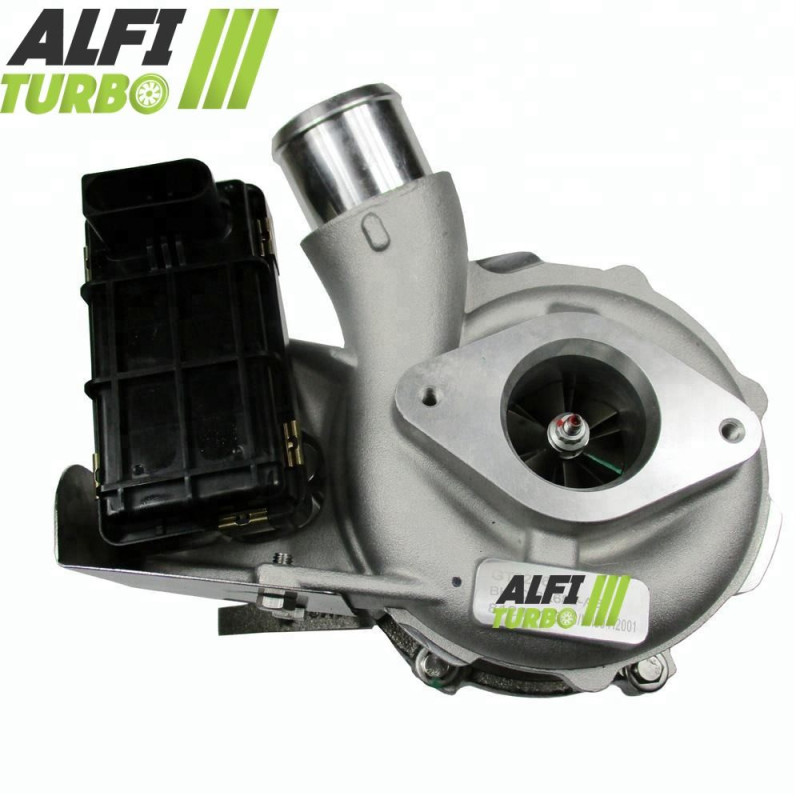

Hybrid Turbo Ford Store 3.2 TDCi 200 hp, BK3Q6K682AB, BK3Q6K682AC, BK3Q6K682RB, BK3Q6K682RC, 798166-0007, 812971-0002,

Hybrid Turbo plug & play (installation without modification)

Stage 1

MFS* high-flow compressor wheel 39.57/56.03mm, 11+0 Performance design, D280

360° thrust bearing

High-speed balancing (150,000 RPM) on Cimat VSR bench

Stage 2

Compressor wheel MFS* big doversized ebit, 47,50/60,01mm, 11+0 Performance Design, D330

Re-profiled housing to accommodate new oversized wheel

360° thrust bearing

High-speed balancing (150,000 RPM) on Cimat VSR bench

Stage 2+

Oversized high-flow MFS* compressor wheel, 50.20/65.00mm, 11+0 Performance design, D300

Re-profiled housing to accommodate new oversized wheel

360° thrust bearing

High-speed balancing (150,000 RPM) on Cimat VSR bench

----------

To achieve this level of power, you also need to adjust your systems d'injection, 'exhaust, cooling and engine calculator. Adjustment of the wastegate must be made during the installation and retrieval of the calculator.

----------

OEM Reference

1717629, 1720418, 1762066, 1857660, BK3Q6K682AB, BK3Q6K682AC, BK3Q6K682RB, BK3Q6K682RC

Manufacturer reference

798166-0007, 798166-5007S, 812971-0002, 812971-0006, 812971-5002S, 812971-5006S

Vehicle assignment

Ford Store 3.2 TDCI 20V 200 hp starting in 2011
